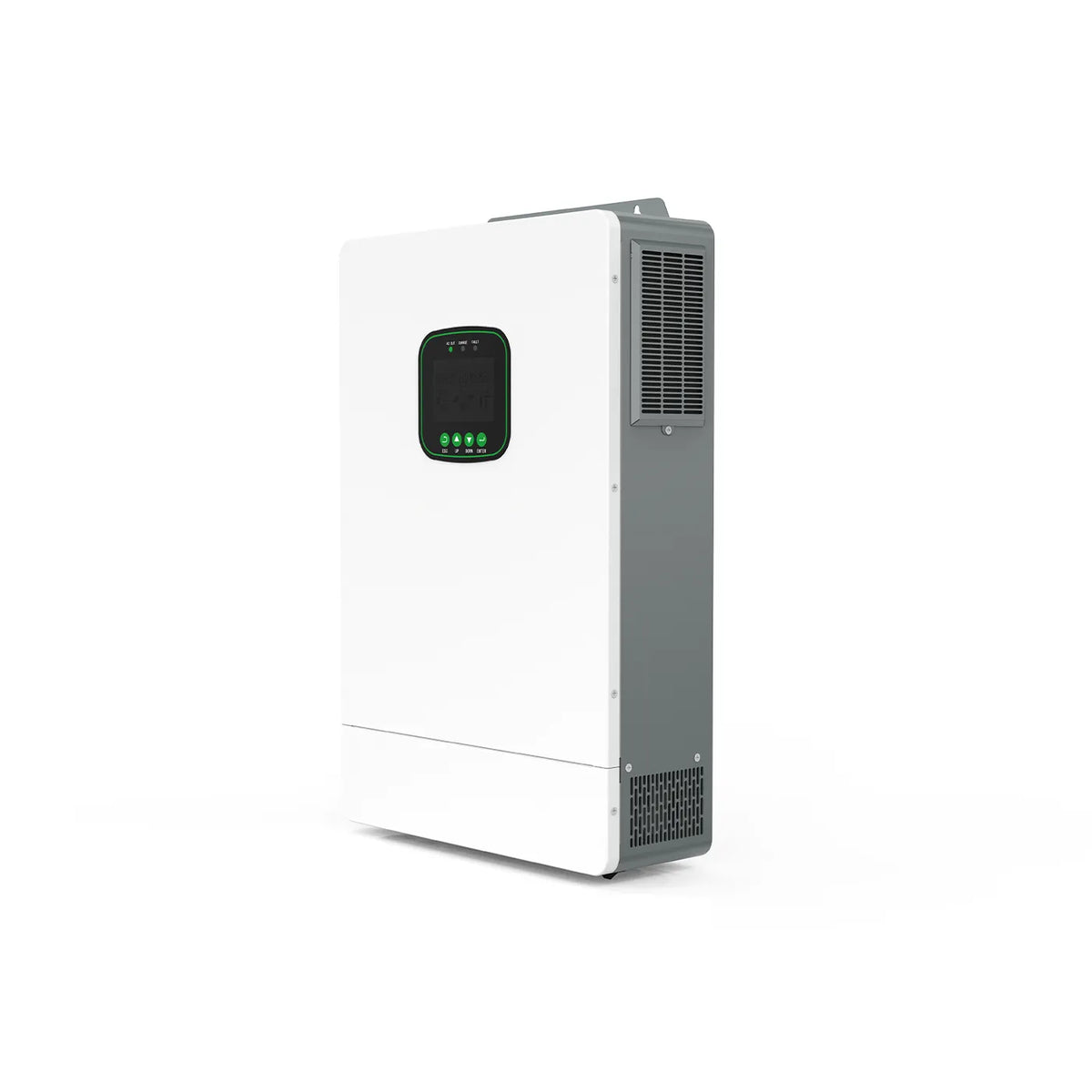

4860V100-5004860V100-500 6kW Hybrid Solar Inverter
Explore this product for your market.
A 6kW hybrid solar inverter with dual MPPT charging and pure sine wave output.
MODEL 4860V100-500 ·SKU 4860V100-500
Product information for distributors.
DESIGNED FOR EVERYDAY LIVING
Discover the details.
Explore the product imagery and contact our team for the latest specifications and distributor information.
4860V100-500 · Home Energy collection
Specifications
4860V100-500 · Product reference
- Brand
- Blisbond
- Product Type
- Hybrid Solar Charge Inverter
- Model
- 4860V100-500
- Rated Output Power
- 6,000 W
- Output Waveform
- Pure Sine Wave
- Rated Output Voltage
- 230 VAC
- Output Frequency
- 50/60 Hz
- Efficiency
- ≥93%
- Peak Power
- 12,000 VA
- Parallel Operation
- Up to 6 units
- Battery Voltage
- 51.2 V DC
- Battery Voltage Range
- 40–60 V DC
- Battery Type
- Lead Acid / Lithium Battery
- Maximum Charging Current
- 150 A
- MPPT Quantity
- 2
- Maximum PV Input Power
- 9,000 W
- Maximum PV Input Current
- 27 A × 2
- PV Voltage Range
- 90–450 V DC
- PV Open Circuit Voltage
- 500 V DC
- Communication Interface
- USB / RS485 / WiFi / GPRS / Dry Contact
- Protection System
- Overload, Short Circuit, Overvoltage, Over Temperature Protection
- Operating Temperature
- -10°C to 55°C
- Storage Temperature
- -25°C to 60°C
- Humidity Range
- 5%–95% (Non-condensing)
- Noise Level
- ≤60 dB
- Cooling System
- Forced Air Cooling
- Installation
- Wall Mounted
For electrical ratings, dimensions and market-specific documentation, request the full specification sheet.
