TYL-580W
Front view
HOME ENERGY / HOUSEHOLD ENERGY

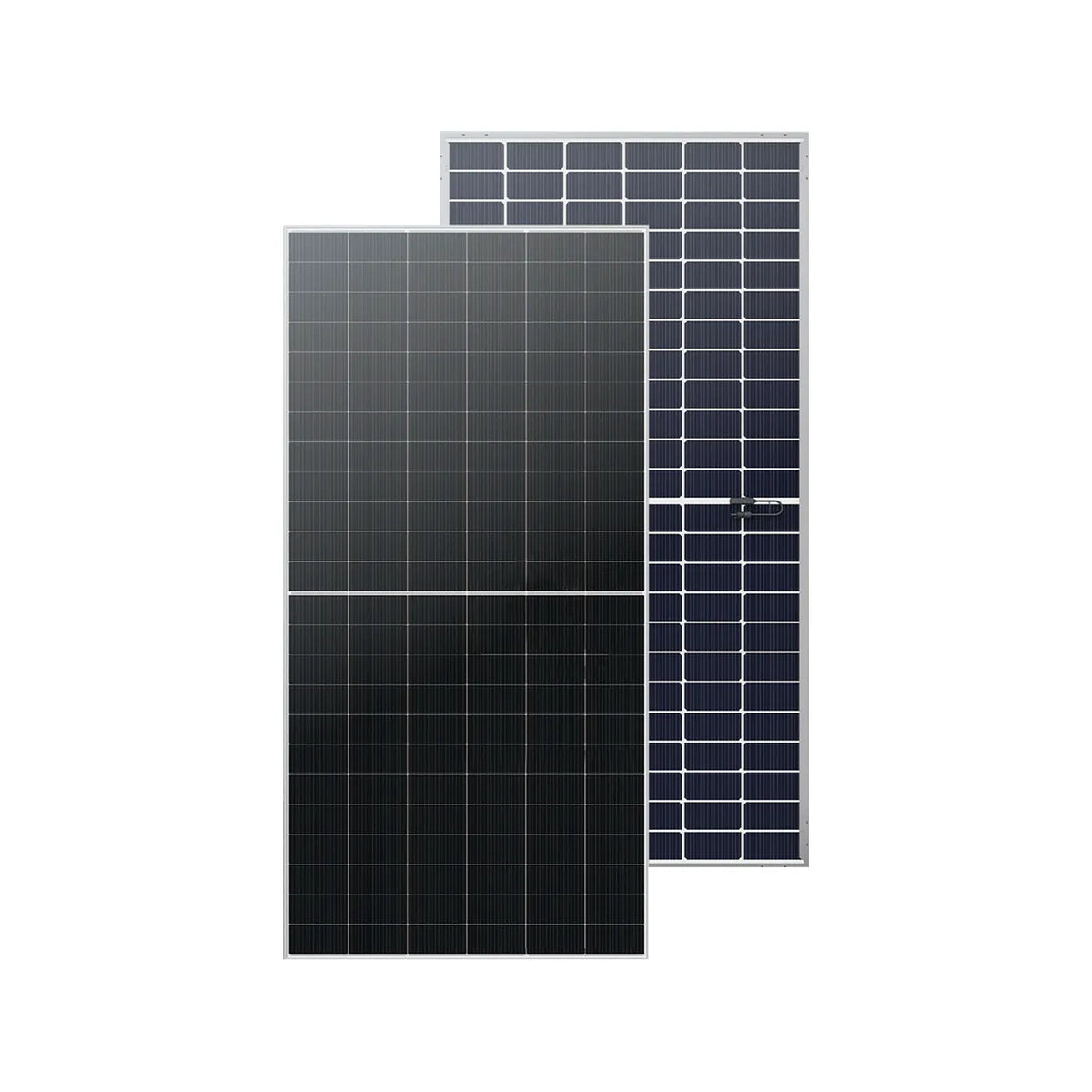

TYL-580WTYL-580W Bifacial Solar Panel
Explore this product for your market.
A 580W N-Type bifacial double-glass solar panel for residential and commercial solar projects.
MODEL TYL-580W ·SKU TYL-580W
Product information for distributors.
DESIGNED FOR EVERYDAY LIVING
Discover the details.
Explore the product imagery and contact our team for the latest specifications and distributor information.
TYL-580W · Home Energy collection
Specifications
TYL-580W · Product reference
- Brand
- Blisbond
- Model
- TYL-580W
- Module Type
- N-Type Mono-crystalline Bifacial Double Glass
- Maximum Power (Pmax)
- 580 W
- Cell Type
- N-Type Mono-crystalline 144 Cells (6×24)
- Dimensions
- 2278 × 1134 × 30 mm
- Weight
- 31.8 kg
- Front Cover
- 2 mm Heat Strengthened Glass
- Rear Cover
- 2 mm Heat Strengthened Glass
- Junction Box
- 3 Diodes, IP68 Protection
- Connector Type
- PV-ZH202B / MC4-EVO 2A (1500 V)
- Maximum System Voltage
- 1500 VDC
- Operating Temperature
- -40°C to +85°C
- Maximum Series Fuse Rating
- 30 A
- Protection Class
- Class II
- Front Load Capacity
- 5400 Pa
- Rear Load Capacity
- 2400 Pa
- Maximum Power Voltage (Vmp)
- 43.85 V
- Maximum Power Current (Imp)
- 13.24 A
- Open Circuit Voltage (Voc)
- 52.50 V
- Short Circuit Current (Isc)
- 13.99 A
For electrical ratings, dimensions and market-specific documentation, request the full specification sheet.
